Custom battery for Evolve Bamboo GT

Discussion in 'Evolve Skateboards' started by Nickelberry, Feb 12, 2017.

More threads by Nickelberry
  1. Biostaff

    Biostaff Member

    Hey dude, are you willing to share your design ?
    I just made the battery upgrade and unfortunately i can't have access to any CNC around here.
    But i have a 3D printer !

  2. Murray

    Murray Member

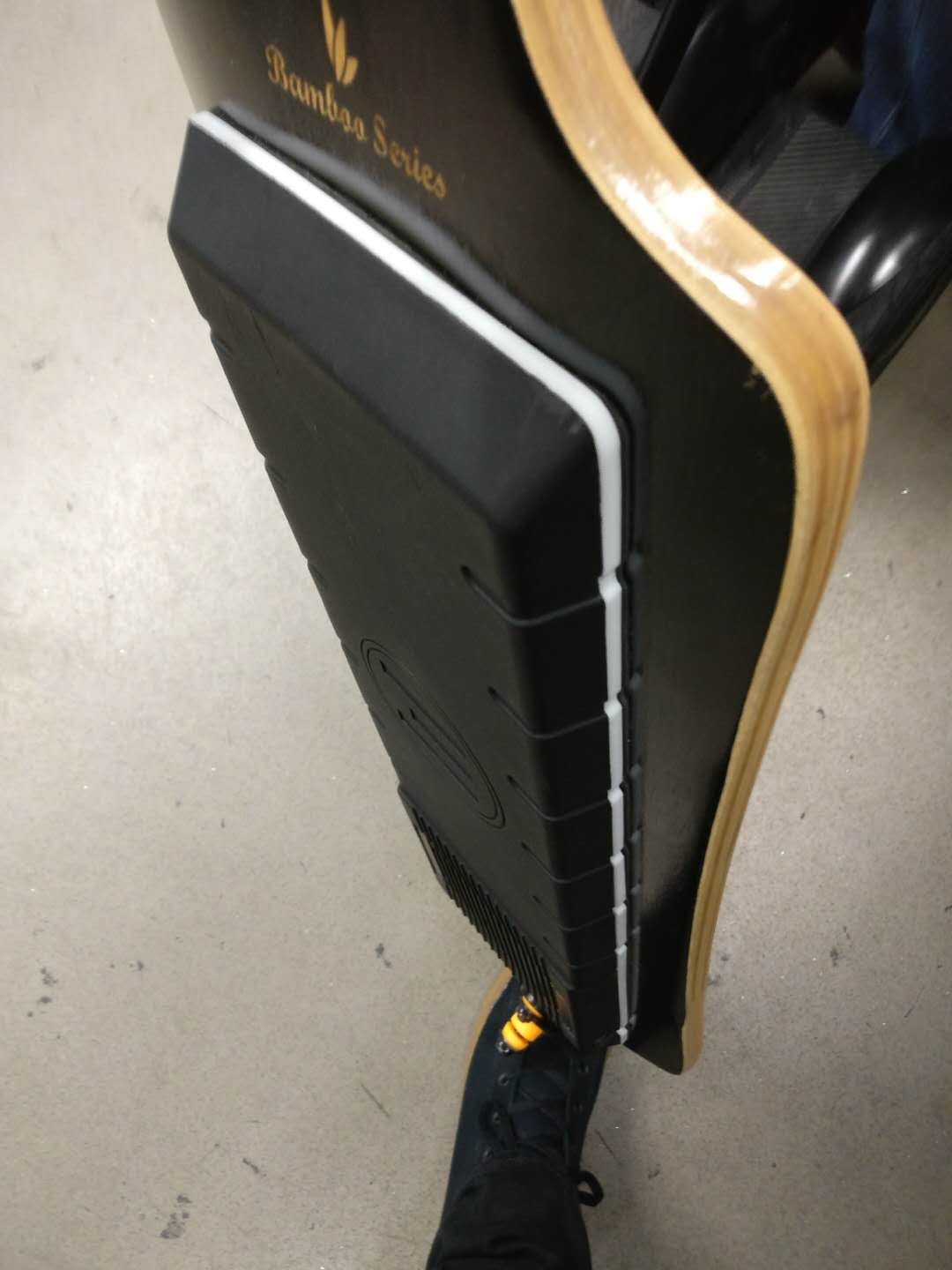

    Looks great! With an accurate design and good quality filament it's a damn good option.

    WeChat Image_20171207204138.jpg

    • Like Like x 2
  3. Bowski

    Bowski Member

    Hi Murray,

    that´s awesome. Could you send me this print file?

    This is exactly what I need.

  4. Bowski

    Bowski Member

    I am offering battery mods for Evolve boards in Germany now.

    If you are intterested you can contact me via WhatsApp: 015120940064

  5. Garypii

    Garypii Member

    I did’nt know there is a motor menu. How do you get into it?

  6. Bowski

    Bowski Member

  7. vctrvlad

    vctrvlad Member

    hi, does anyone know if it would be possible in any case to fit the GTC electronics under a Bamboo deck?

    I have the GTC and the deck is fckd, so I can't think right now of spending 400Euro on a deck.

    The bamboo deck is 100+50 cover, so 150Euro.

    Thanks

  8. Hi Everyone,
    What dimensions has the battery case for this longbord generation? LxWxH

  9. Frankie

    Frankie Member

    -Evolve bms can only handle 60A current so anything above just overkill. I have 30q cells in 4p10s what gives 60A continious, 80A max.
    -avoid the cheap chinese spot welder
    -make your pack flexible enough
    -enjoy building!

  10. Vishnu

    Vishnu Member

    Is there a way to do this battery pack without modding the deck or enclosure for more space?

  11. KWasch

    KWasch Member

    I just finished a 18650 battery swap. I found a 3d printed spacer on Thingyverse. Cost me like $20 to have made. Fit was a little off but easily fixed. I’d like the files for the spacer a few pages back. That looks like a better fit than mine @UrNzWy

  12. Vishnu

    Vishnu Member

    Can a 10s 3p fit without modifying

  13. KWasch

    KWasch Member

    It would fit within the factory deck cutout but I believe the 18650 is a little taller so deck flex may be a concern

    • Sad Sad x 1
  14. walterafable

    walterafable Member

    Yes, the CGT battery, BMS, and motor controller will fit in one of the Bamboo decks. The safer bet is the GTX deck as it has slightly more room that the GT due to the portion that is routed out of the bottom side of the deck. Don't forget to buy the enclosure.

  15. walterafable

    walterafable Member

    Nope. When you do this mod, you need to stack the BMS on top of the motor controller. Without the spacer or additional space routed out from under the deck, it won't fit. The 18650 cells also benefit from the additional space since the board flexes The gained space gives the pack some safe room to move around, limiting the potential to break one of the battery welds, causing a short and a fiery death (to your board). The spacer is really the best way to go. There is another design posted on Thingiverse that has 4 parts. That's the one I used.

    • Like Like x 1
  16. walterafable

    walterafable Member

    A 10S3P would not be worth the effort. You wouldn't get enough of a bump in torque and range.

  17. Vishnu

    Vishnu Member

    What welder is the best to get for this project?

  18. Paul

    Paul Member

    I’m just starting a similar project for my wife’s a Bamboo GT. Here in Brisbane Australia we’ve an active FB group. When I raised the issue of space there I got this reply:

    This spacer from Murray Owen is a cracker too if you have a 3d printer with a big enough bed (it needs 300mm x 300mm). Gives enough room to use the standard box with a 10p4s array.

    8mm Spacer for Evolve Bamboo GT GTX (2-piece) found on #Thingiverse 8mm Spacer for Evolve Bamboo GT GTX (2-piece) by mkowen

    Hope it helps!

    Paul
